Plastic Recycling & Washing machine
PP/PE/HDPE/LDPE Bottle Recycling &Washing Machine

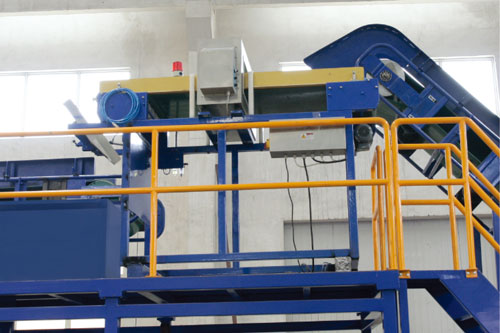

Metal detector
Fixed on belt conveyor. On-demand configuration.

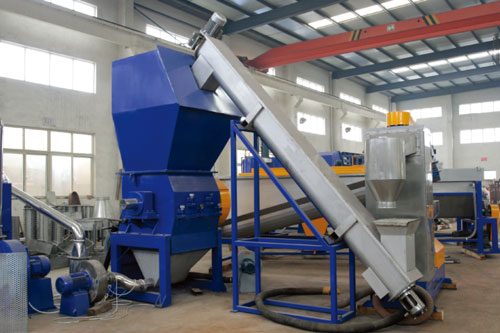

Crusher
According to the output and product ，equipped with different types of equipment

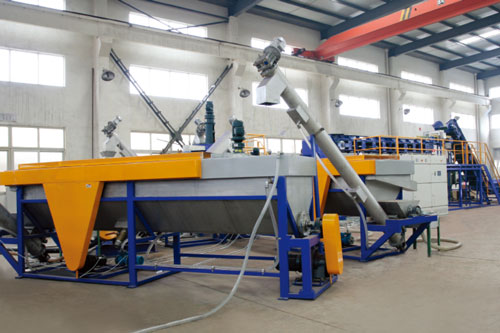

High Speed Friction washing machine&Rinsing washing tank
According to the cleanliness of the product。

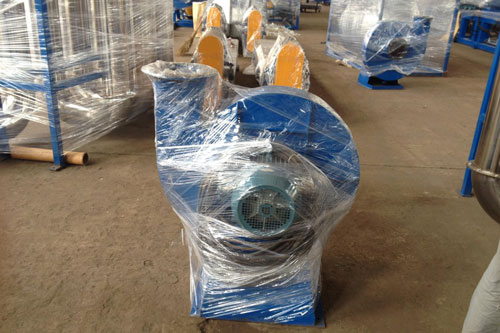

Blowing Machine/Pipeline Dryer/Heating Oven

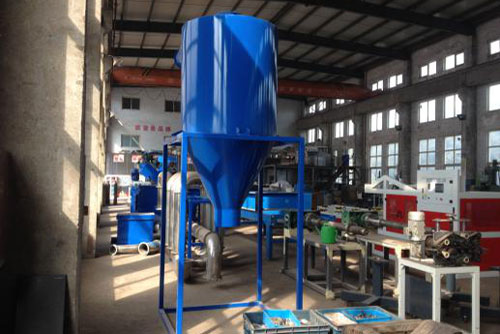

Vertical Round Storage hopper Description
This machine can automatically work, only need three or four people operate easily, high capacity, low energy consumption. effective design and so on.
In order to improve capacity and quality of final product, we can change technological process according to the requirement of different material.
Materials
HDPE Hydrochloric Acid Tank
HDPE Milk Bottle
Specification
| Capacity (kg/h) | 250-300 | 450-500 | 900-1000 |
| Belt conveyor | |||
| Motor Power(kw) | 1.5KW | 1.5KW | 2.2KW |
| Length | 4500mm | 5000mm | 5500mm |
| Metal Detector | |||
| Size(mm) | 1200*800 | 1200*800 | 1200*800 |
| Crusher | |||
| Motor Power(kw) | 37kw | 45kw | 90kw |
| Screw Feeder | |||
| Motor Power(kw) | 1.5KW | 3KW | 2.2KW |
| High speed Friction washing machine | |||
| Motor Power(kw) | 30KW | 37kw | 55kw |
| washing tank | |||
| Size(mm) | 6000*1000mm | 6000*1500mm | 6000*1600mm |
| Screw feeder | |||
| Motor Power(kw) | 1.5KW | 3KW | 2.2KW |
| Dewatering machine | |||
| Motor Power(kw) | 11kw | 37KW | 55kw |
| Blowing Machine | |||
| Motor Power(kw) | 2.2kw | 11kw | 11kw |
| Heating oven | |||
| Motor Power(kw) | 30kw | 36kw | 37kw |
| Pipeline | |||
| Pipeline diameter | 219mm | 219mm | 219mm |
| Storage Hopper | |||
| Volume | 1m³ | 1m³ | 1m³ |
