Plastic Recycling & Washing machine
PS ABS Washing Machine
High Capacity , Low-energy Consumption
This machine can automatically work, only need three or four people operate easily, high capacity, low energy consumption. effective design and so on.
In order to improve capacity and quality of final product, we can change technological process according to the requirement of different material.

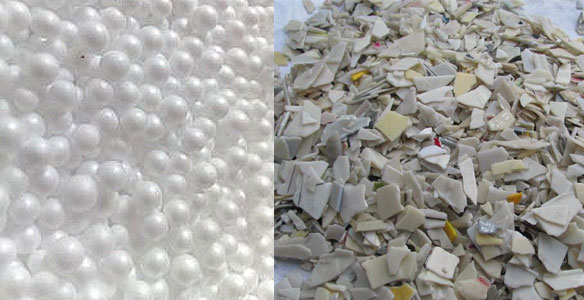

Materials
ABS flakes
PS Flakes
Specification
| Capacity (kg/h) | 250-300 | 450-500 | 900-1000 |
| Belt conveyor | |||
| Motor Power(kw) | 1.5KW | 1.5KW | 2.2KW |
| Length | 4500mm | 5000mm | 5500mm |
| Metal Detector | |||
| Size(mm) | 1200*800 | 1200*800 | 1200*800 |
| Crusher | |||
| Motor Power(kw) | 37kw | 45kw | 90kw |
| Screw Feeder | |||
| Motor Power(kw) | 1.5KW | 3KW | 2.2KW |
| High speed Friction washing machine | |||
| Motor Power(kw) | 30KW | 37kw | 55kw |
| washing tank | |||
| Size(mm) | 6000*1000mm | 6000*1500mm | 6000*1600mm |
| Screw feeder | |||
| Motor Power(kw) | 1.5KW | 3KW | 2.2KW |
| Dewatering machine | |||
| Motor Power(kw) | 11kw | 37KW | 55kw |
| Blowing Machine | |||
| Motor Power(kw) | 2.2kw | 11kw | 11kw |
| Heating oven | |||
| Motor Power(kw) | 30kw | 36kw | 37kw |
| Pipeline | |||
| Pipeline diameter | 219mm | 219mm | 219mm |
| Storage Hopper | |||
| Volume | 1m³ | 1m³ | 1m³ |
