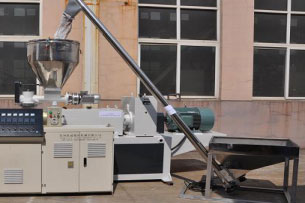

Plastic Granulating Machine
PVC Air-cooling Compounding Machine
Twin-coin force feeding
Using hot cutting die mould
The cyclone gathers the pellets and reduces the impact after high speed dryer prior to next vibrating screener.
You can purchase our screw loader additionlly as options for convenience. Plastic mixed material, PVC, EVA, Film ,Hard Plastic ,PVC Plastic Pipe

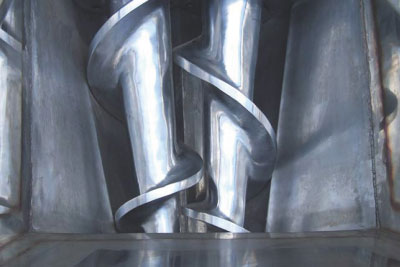

Adequate kneading. Easy to clean and change raw material, saving hours of work.
High capacity, low electricity usage.
Use double layer cyclone cooling tank to cool down finished products
Support the adding of Calcium up to 85%
The result of output production depends on actual specific gravity of materials
Materials
PVC
Specification
| Model | SJZ51 | SJZ65 | SJZ80 | SJZ92 |
| Screw loader | ||||
| Motor power | 1.5KW | 1.5KW | 1.5KW | 1.5KW |
| Twin screw Extruder | ||||
| Screw diameter(mm) | 51 | 65 | 80 | 92 |
| L/D | 14.5:1 | 14.6:1 | 15.25:1 | 17.86:1 |
| Capacity(kg/h) | 120 | 200 | 350 | 600 |
| Screen diameter | 100mm | 100mm | 100mm | 100mm |
| Main motor power(kw) | 18.5 | 37 | 55 | 80 |
| Total power | 70 | 100 | 150 | 200 |
| Line length(mm) | 12 | 14 | 16 | 18 |
